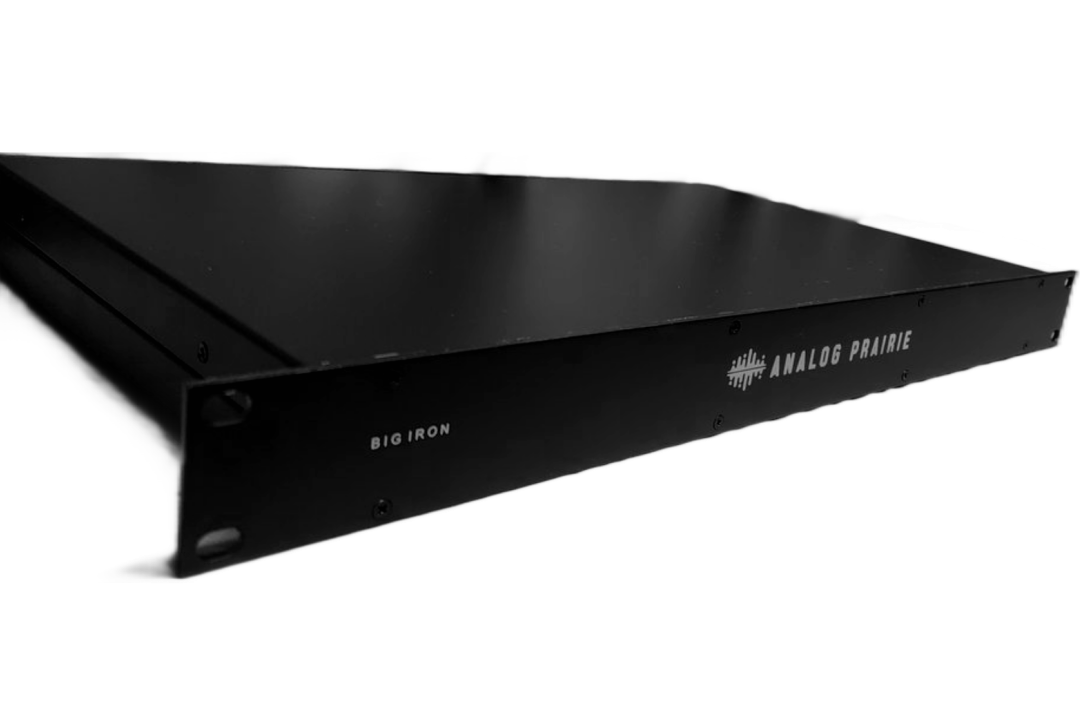

Big Iron is a simple, passive stereo processor built around high-quality Jensen transformers. It’s designed to sit between your output and your next stage, adding a bit of analog weight and cohesion without introducing noise or complexity.

No power required. No active circuitry. Just a straightforward transformer signal path.

Overview

This unit uses a dual-mono, 1:1 transformer topology for balanced stereo processing.

• Balanced XLR input and output

• Passive design (no power supply)

• Transformer isolation between stages

• Hand-built in Iowa

It can be used on a mix bus, stems, or during tracking — wherever a subtle bit of analog character is useful.

Sound

Big Iron is not designed to drastically reshape your signal. It’s more about small changes that add up over time.

• Slight low-end weight

• A bit more density through the mids

• Gentle smoothing on the top end

• Improved sense of cohesion in stereo material

If driven harder from the source, the transformers can introduce mild saturation. At lower levels, the effect is more transparent.

Typical Use Cases

• Mix bus insert

• Stem processing (drums, vocals, instruments)

• Tracking through a transformer stage

• Sending audio out of the DAW and back in

It pairs well with external preamps or line stages if you want additional control over level and gain.

Build

• Jensen transformers (1:1 ratio)

• Gold-contact XLR connectors

• 1U rackmount enclosure

• Hand-assembled

Details

• Condition: Brand New

• Format: 1U Rackmount

• I/O: Balanced XLR (Stereo)

• Circuit: Passive, transformer-based

Notes

This is a passive device, so overall level depends on your source and downstream gear. It’s intended as a subtle tone-shaping stage rather than a gain device.
